Types of Fall Protection Systems: Complete Guide

Last updated: April 2026

Your crew is 40 feet up on a steel structure. The question is not whether they need fall protection. The question is which system matches the hazard. A guardrail on an open-sided floor is not the same protection as a harness on a leading edge. A self-retracting lifeline on a rooftop is not the same as a safety net under a bridge deck. The main types of fall protection systems are guardrails (passive), fall restraint, personal fall arrest systems, safety nets, and administrative controls (warning lines and safety monitors). Each system serves a different purpose. Using the wrong one creates a false sense of security.

For a broader overview including regulations and penalties, read our complete fall protection guide.

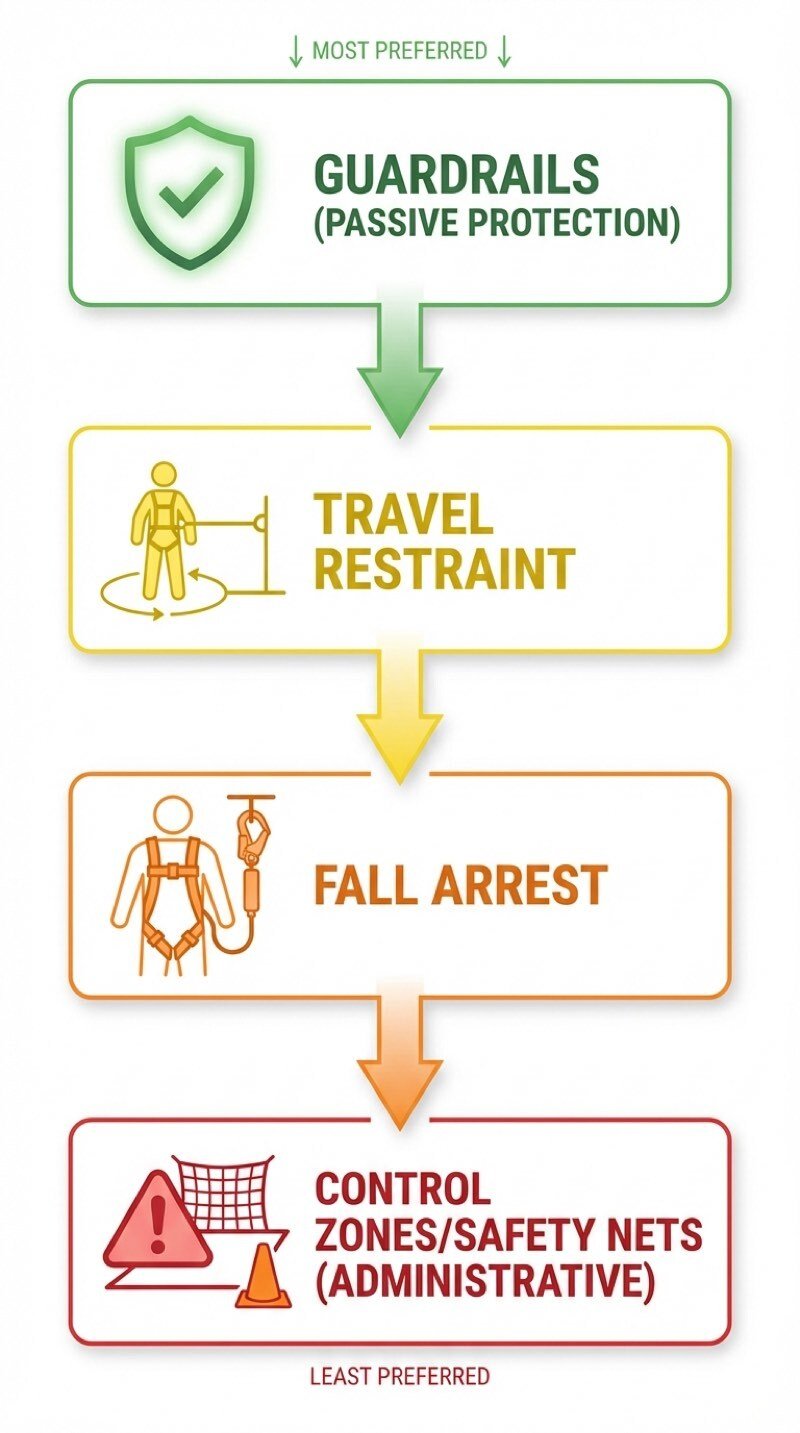

The Fall Protection Hierarchy of Controls

Before selecting a system, you need to understand the hierarchy. Both OSHA (1926.502) and Canadian provincial OHS regulations follow the same principle: eliminate the fall hazard first. If you cannot eliminate it, use the most effective system available.

1. Elimination: Can the work be done at ground level? Can you prefabricate components and lift them into place? Can a drone do the inspection?
2. Passive protection (guardrails): Barriers that protect workers without requiring any action on their part.
3. Fall restraint: Systems that prevent the worker from reaching the fall hazard.
4. Fall arrest: Systems that stop a fall after it starts.
5. Safety nets: Catch a falling worker before they hit a lower surface.
6. Administrative controls: Warning lines, controlled access zones, safety monitors. The weakest form of protection.

The hierarchy exists for one reason: preventing a fall is always better than catching one. A worker who never reaches the edge does not need a rescue plan.

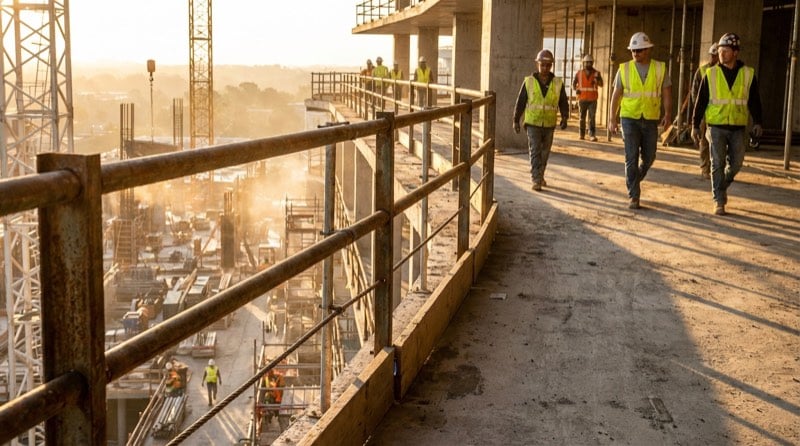

Guardrails (Passive Fall Protection)

Guardrails are the most reliable fall protection system because they require zero effort from the worker. Once installed, every person on that platform is protected. No training on proper use, no daily inspection of personal equipment, no fall clearance calculation.

OSHA Requirements (US)

• Top rail height: 42 inches (+/- 3 inches) from the walking/working surface (1926.502(b))
• Mid-rail at approximately 21 inches
• Must withstand 200 pounds of force applied in any outward or downward direction at the top edge
• Surface must be smooth to prevent punctures, lacerations, or snagging of clothing
• Toeboard required when materials could fall from the edge (minimum 3.5 inches high)

Canadian Standards

In Canada, guardrail requirements vary by province but generally follow CSA Z259.18 for counterweighted systems. Alberta OHS Code Part 9 requires guardrails at permanent edges and any temporary edge where workers could fall 3 metres or more. Most provinces require a top rail between 900 mm and 1,070 mm (approximately 36 to 42 inches).

When to use guardrails: Open-sided floors, platforms, runways, ramps, scaffolding, rooftop edges, stairway openings, and around floor holes. Guardrails should be your default answer. If you are asking "why guardrails?" the better question is "why not guardrails?"

Fall Restraint Systems

Fall restraint is the most underused system in the industry. It prevents the worker from reaching the fall hazard entirely. A body belt or harness connected to a short tether keeps the worker within a safe zone, physically unable to get close enough to the edge to fall.

The advantages over fall arrest are significant:

• No free fall occurs, so there is no impact force on the worker
• No risk of suspension trauma (the worker never hangs)
• No rescue plan required (no one is suspended)
• Lower anchor point strength required (restraint loads are much lower than arrest loads)
• A body belt can be used (unlike fall arrest, which requires a full-body harness under OSHA)

When to use fall restraint: When the work area has a defined edge and the worker does not need to reach beyond it. Rooftop HVAC maintenance, perimeter work on a building with a parapet, or platform work where the worker's task is within reach of a central anchor. If the worker never needs to go near the edge, restraint is simpler and safer than arrest.

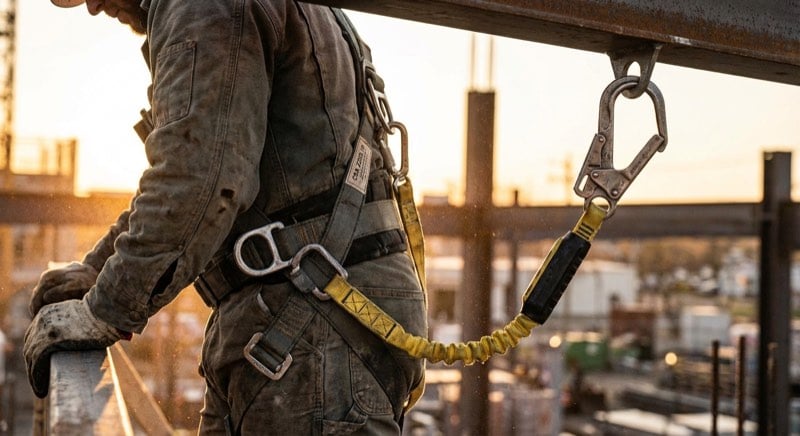

Personal Fall Arrest Systems (PFAS)

This is what most people picture when they hear "fall protection." A personal fall arrest system stops a fall after it begins. It has three components, and all three must work together:

Full-Body Harness

The harness distributes the arrest force across the worker's shoulders, chest, thighs, and pelvis. In the US, harnesses must meet ANSI Z359.11. In Canada, the standard is CSA Z259.10. Body belts are prohibited for fall arrest under OSHA because they concentrate the force on the abdomen, risking internal injuries.

Connecting Devices

Two main types:

• Shock-absorbing lanyards: A fixed-length lanyard (usually 6 feet) with an energy absorber that deploys during a fall to limit the arrest force to 1,800 lbf (8 kN). The absorber adds up to 3.5 feet of deceleration distance. Standard: ANSI Z359.13 (US), CSA Z259.11 (Canada).
• Self-retracting devices (SRLs): Retract automatically like a seatbelt. Limit free fall to about 2 feet (versus 6 feet for a lanyard). Standard: ANSI Z359.14 (US), CSA Z259.2.2 (Canada). SRLs are increasingly standard because they reduce fall distance and fall clearance requirements.

Anchor Points

The anchor is the component most often chosen incorrectly. OSHA requires anchor points to support 5,000 pounds per person attached, or to be designed by a qualified person with a safety factor of at least 2 (1926.502(d)(15)). In Canada, CSA Z259.15 covers anchor connectors. An I-beam with a beam clamp, a concrete embed plate, or a roof anchor rated for the load are proper anchors. A plumbing vent, a conduit run, or "whatever was up there" are not.

Fall Clearance: The Calculation Most Contractors Skip

Fall clearance is the minimum distance needed below the worker's feet for the fall arrest system to deploy fully without the worker hitting the lower surface. Getting this wrong is fatal.

The calculation for a shock-absorbing lanyard:

With an SRL, the free fall distance drops to about 2 feet, reducing the total clearance to roughly 14.5 feet. This is why SRLs are preferred on shorter structures: they give you back 4 feet of clearance that a lanyard does not.

Safety Nets

Safety nets catch falling workers before they hit a lower surface. They are most common in bridge construction, steel erection, and other large-scale projects where personal fall arrest is impractical for large numbers of workers moving across open areas.

OSHA requirements (1926.502(c)):

• Maximum mesh opening: 6 by 6 inches
• Border rope minimum breaking strength: 5,000 lbs
• Must be installed within 30 feet of the working surface
• Must be tested with a 400-pound sandbag drop after installation and after any repair
• No tools, scrap, or debris may accumulate in nets (must be cleaned regularly)

Warning Lines and Controlled Access Zones

These are the weakest form of fall protection and are only permitted in limited situations. OSHA allows warning line systems for low-slope roofing work (1926.502(f)). Requirements:

• Warning line erected no closer than 6 feet from the roof edge
• Flagging at no more than 6-foot intervals
• Line height between 34 and 39 inches
• A designated safety monitor must be assigned

These systems depend entirely on human behaviour. A worker who walks past the warning line is unprotected. A safety monitor who is distracted is useless. This is why warning lines sit at the bottom of the hierarchy, and why they should only be used when every other option has been exhausted.
