Wire rope slings need daily pre-use and yearly periodic inspections under ASME B30.9. Know the broken wire limits, removal criteria, and record rules.
Your wire rope sling looks fine from the truck. But a single broken wire hidden in the eye, a kink the rigger didn't notice, or a tag so faded no one knows the rated load. Any one of these can drop a load on someone's head.
And it happens more than you think. From 2011 to 2017, 297 crane-related deaths were recorded in the US alone, averaging 42 per year, and over half of those involved a worker struck by falling equipment or objects Bureau of Labor Statistics. In 79 of those cases, the object fell from or was put in motion by a crane. A wire rope sling with unseen damage is the weak link that makes those headlines.
The good news: most of these failures are preventable with two simple routines: a quick daily look before use, and a thorough periodic inspection on a set schedule. The bad news: most rigging programmes treat inspections like a paperwork afterthought instead of a frontline safety control.
This guide covers everything you need to know about wire rope sling inspection, from who can do it and how often, to the exact ASME B30.9 removal criteria and what records you actually need to keep.
A wire rope sling is a lifting assembly made of steel wire rope with end fittings: eyes, hooks, or pressed sleeves that connect a load to a crane, hoist, or other lifting equipment. It is one of the most common rigging tools in construction, oil and gas, mining, and manufacturing because it handles high loads, withstands heat and abrasion, and bends around corners better than chain.
Wire rope slings come in several configurations:
Each type has a rated load that changes based on the hitch configuration used. That rating is printed on the sling tag. If the tag is missing or illegible, the sling is out of service, full stop.
The statistics are brutal. 90% of all crane accidents are a direct result of human error Heavy Equipment College, and 80% of crane upsets happen when operators exceed the crane's operational capacity SafetyNow. But the operator isn't always the one at fault: the rigging is.
In a 10-year analysis of 249 industrial overhead crane incidents, 27% were "load dropped" events: the load came off the hook or the rigging failed Bureau of Labor Statistics CFOI data. When a wire rope sling fails, it fails catastrophically. There is no partial failure mode that gives you a warning. The rope holds, holds, holds, then it doesn't.
The most common causes of wire rope sling failure are all inspection-related:
Every one of these conditions is visible to a trained eye. That's why inspections aren't compliance theatre: they are the last line of defence between a normal lift and a fatality investigation.
Under OSHA 1910.184 and 1926.251, wire rope sling inspections must be performed by a competent person, someone who:
The competent person is not required to be a certified inspector or an engineer. OSHA defines the role by capability and authority, not by credential, though most employers put their lead rigger, foreman, or safety supervisor in this role. What matters is that the person actually knows what broken wires, birdcaging, and corrosion pitting look like, and that they have the power to act when they see it.
For periodic (thorough) inspections, ASME B30.9 recommends that a qualified person, someone with recognised professional standing or specific training, perform or supervise the inspection. Many employers use an outside rigging specialist or the manufacturer's certified inspector for this.
Canadian provinces generally adopt CSA Z150-20 (Safety Code on Mobile Cranes) and reference ASME B30.9 for sling inspection standards. A competent person must perform inspections, and for annual crane-related inspections, CSA Z150 requires supervision by an engineer.
Some provinces, notably Quebec and British Columbia, have additional documentation requirements for sling inspection certificates. Always check your provincial OHS regulations if you operate in Canada.
A daily (frequent) inspection is a hands-on visual and tactile check performed by the user or competent person before each shift or before each use if the sling has been idle. It takes two to three minutes and follows a simple sequence:
No tag → remove from service. No exceptions.
Work from one end fitting to the other, feeling for:
Daily inspections do not require written records under OSHA or ASME. But if your crew finds damage and removes the sling, you should document that decision. A photo on a phone and a note in the daily log is better than nothing.
Still Tracking Sling Inspections on Paper?
If your foreman is digging through a filing cabinet to find last year's periodic inspection record, you already know the problem. Try Safety Evolution free for 30 days and see how fast digital inspection forms, QR code tracking, and automatic scheduling actually work on a real job site.
Start Your 30-Day Free Trial →A periodic inspection is a detailed, documented examination of the entire sling by a competent or qualified person on a set schedule. It covers everything in the daily inspection plus systematic measurement, internal assessment, and formal recordkeeping.
ASME B30.9 sets the minimum frequency based on service severity:
| Service Condition | Minimum Periodic Inspection Frequency |
|---|---|
| Normal service | Yearly |
| Severe service (heavy loads, frequent cycling, harsh environment) | Monthly to quarterly |
| Special or infrequent service | As recommended by a qualified person |
Note: Normal service in a construction yard is not the same as normal service in a climate-controlled warehouse. Most construction, oil and gas, and mining operations fall into the severe service category and should inspect quarterly or more often.
The periodic inspection includes all daily inspection items plus:
Under OSHA 1926.251, the employer must maintain a record of the most recent thorough inspection. Key points:
In Canada, CSA Z150-20 and most provincial OHS codes require records of annual inspections and any defects found. Some provinces require sling-specific certificates. Digital records are acceptable everywhere and are significantly easier to manage, search, and retrieve during an audit.

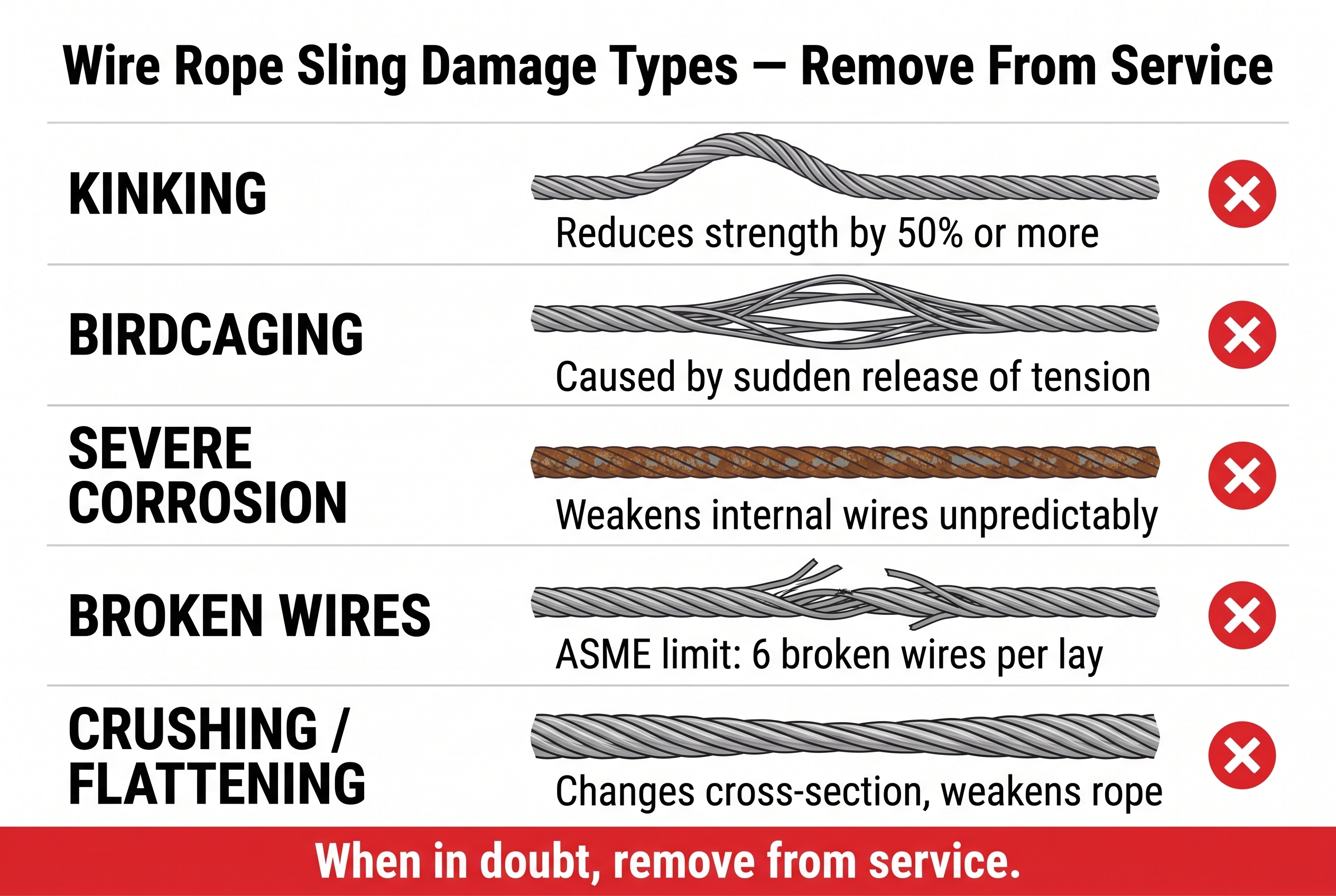

ASME B30.9 is the definitive standard for sling inspection and removal. If any of the following conditions exist, the sling is removed from service immediately and destroyed. Not repaired, not "used for light loads," not put back in the maybe pile.
For single-part / strand-laid wire rope slings:
For rotation-resistant or alternate lay constructions, consult the manufacturer. The limits are typically stricter.
Important: ASME B30.9 does not permit repair of damaged wire rope slings. Once a wire rope sling is removed from service, it must be cut up or destroyed so it cannot be reused. Replacement is the only acceptable option.
Most job sites still use a clipboard and a photocopied checklist. The checklist gets filled out, shoved in a filing cabinet, and forgotten until the auditor shows up. By then, three of the slings on the list have been retired, two weren't even on site when they were supposedly inspected, and the inspector's signature is illegible.
Even though the law doesn't mandate daily inspection logs, the best-run operations track everything:
This level of documentation isn't overkill: it is the difference between an hour of prep for an audit and a week of panic.
If you are still tracking sling inspections on paper, you know the drill. The clipboard lives in the truck, the last periodic record went missing after the last audit, and the foreman's handwriting looks like a ransom note. It is not a competence problem; it is a tooling problem.
Digital inspection forms fix the parts of the job that waste time. Here is what actually changes when you move to a phone or tablet-based system:
OSHA and ASME do not require digital records, but they do require that records exist, are accurate, and are available upon request. A phone-based system makes all three easier without adding paperwork.
For Canadian operators, digital documentation also simplifies provincial compliance. British Columbia and Quebec have stricter recordkeeping requirements than the US federal standard, and digital platforms with cloud backup ensure nothing gets lost when a filing cabinet gets rained on at the yard.
Print this, laminate it, and keep a copy at the rigging storage area.
Stop Guessing. Start Tracking.
Wire rope sling failure is almost always preventable with proper inspection and documentation. The problem is not lack of care. It is lack of a system that actually works in the field. Start your 30-Day Free Trial and build a rigging inspection program your crews will actually use.
Start Your 30-Day Free Trial →A wire rope sling competent person is an employee designated by their employer who has the training and experience to identify sling hazards, and the authority to take corrective action. Under OSHA 1910.184 and 1926.251, the competent person does not need a specific certification. They need capability and organisational authority to remove damaged slings from service and stop unsafe lifts.
ASME B30.9 requires frequent (daily or before each use) inspections and periodic (documented) inspections at least yearly for normal service, monthly to quarterly for severe service, and as recommended by a qualified person for special service. Most construction, oil and gas, and industrial operations qualify as severe service and should inspect quarterly.
For single-part or strand-laid wire rope slings, ASME B30.9 requires removal from service when there are 10 random broken wires in one rope lay, or 5 broken wires in one strand in one rope lay. For rotation-resistant or specialty constructions, consult the manufacturer. Limits are typically stricter.
No. ASME B30.9 does not permit repair of damaged wire rope slings. Once a wire rope sling shows broken wires, kinking, crushing, corrosion, heat damage, or end fitting failure, it must be removed from service and destroyed so it cannot be reused. Replacement is the only acceptable option.
Under OSHA 1926.251, the employer must maintain a written record of the most recent thorough (periodic) inspection. Individual per-sling records are not required by US federal law, though they are recommended as best practice. Daily inspections do not require written records under OSHA or ASME. In Canada, CSA Z150-20 and provincial OHS codes require records of annual inspections and any defects found, with some provinces (notably Quebec and British Columbia) requiring sling-specific certificates.
Wire rope slings do not have a fixed expiration date, but they do have a service life determined by use, environment, and inspection history. A sling that passes daily and periodic inspections and shows no ASME B30.9 removal criteria can remain in service indefinitely. However, slings in severe service (heavy loads, frequent cycling, harsh environments) typically require replacement far sooner than those in normal service. Always follow the manufacturer's recommendations and your qualified person's assessment.
